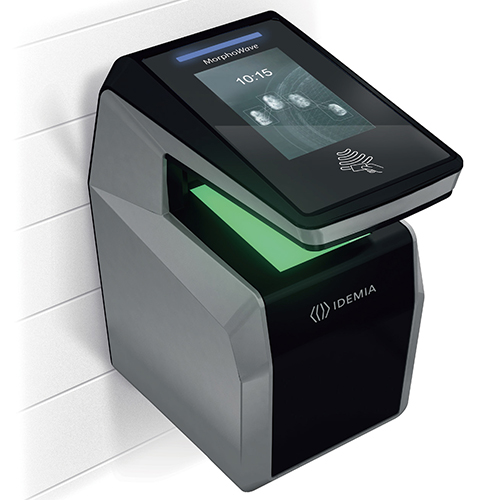

Morphowave Compact 飛航式3D指紋辨識
  CPU:Nvidia ARM Cortex-A15 Quad-Core 2.1GHz

  4.3”WVGA color capacitive touchscreen

  Loudspeakerµphone Intercom function

  Audio & videoplayer

  Touchless fingerprintsensor
Handpresence detection QR code scanning capability

  ContactlessreaderoptionsProx,iClass, MIFARE/DESFire

  Tamper seitches

   Internal storage capacity16GB Flash, 2GB RAM
       -20,000 user records (2*4 fingers each) for 1:N identification,
       extendable to 40,000 with licenses.
-250,000 IDs in authorized user list - 1 Million transaction logs

-  Ethernet, RS485, RS422, USB

  Inputs/outputsWiegand In & Out (customizable up to 512 bits),
             Door Relay, 3 GPI (including Door monitoring), 3 GPO

  Power supply12 to 24 V DC (2.5A min @12V) Power over Ethernet with PoE+ switches

  Operating conditions:-Temperature: -10°C to 55°C (14°F to 131°F)
                 Humidity: 10% to 95% (non condensing)

  Ingress protectionIP65

  Host Interface250*152*216 mm

  Weight2.2 kg

  EMC/Safety standardsCE, CB, FCC

  RoHS, REACh and WEEE compliant

 可結合多種卡片格式與QR code讀取
